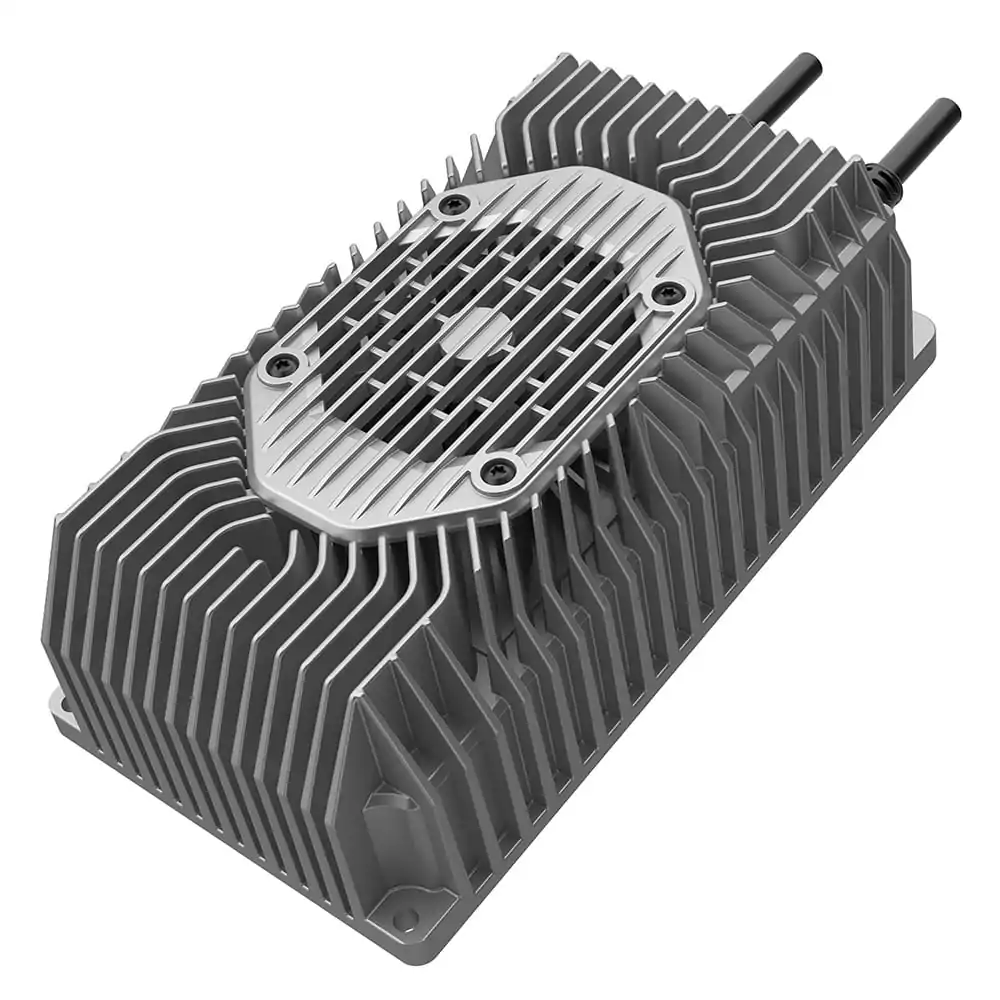

1800W CG
Sealed Design
Portable/ Onboard
Cycle charging or floating charging for battery pack of lead-acid, lithium, NI-MH, NI-CD in E-scooter, E-motorcycle, ATV/UTV, golf cart, lawn mower, AGV, forklift, E-surfboard, E-boat, etc.
PRODUCT CHARACTERISTICS
SAFETY
Active PFC and LLC techniques applied.
Reliable hardware and voltage& current self-test protection.
Advanced charging strategy to ensure safety in the charging process.
In compliance with UL/CB/CE/FCC/KC/RCM/ CEC/DOE/CP65/ECE R10 directives.
RELIABILITY
Integrated die casting technique for shell.
Inside filled with Organosilicon Encapsulant for heat-conducting, anti-shock, anti-aging.
Proven verification in all kinds of tough industrial environments (Wet, Hot, High vibration, Dust).
FUNCTIONS
CAN BUS (Optional)
Auxiliary Power (Optional)
Vehicle Charging Interlock System (Optional)
External Indicator (Optional)
Technical Specifications
Rated AC Input Voltage Range: 120VAC/200~240VAC; 50/60Hz
AC Input Max Current: 15.5A
| Models | Battery Pack Rated Voltage | Max Output Voltage | Max Output Current |
|---|---|---|---|
| 1800CG24XX | 24V | 24V ~ 33V | 30A |
| 1800CG36XX | 36V | 30V ~ 44V | 30A |
| 1800CG48XX | 48V | 39V ~ 60V | 30A |
| 1800CG60XX | 60V | 48V ~ 73V | 30A |
| 1800CG72XX | 72V | 60V ~ 88V | 25A |
| 1800CG84XX | 84V | 72V ~ 103V | 20A |
| All Models | |
|---|---|
| Dimensions | 248x 135x 80mm |
| Weight | 6.2kg (13.64lb) |
| All Models | |
|---|---|
| Operating Temperature | -30°C~65°C (-80℉~149℉) |
| Storage Temperature | -40°C~95°C (-104℉~203℉) |
| IP Rating | IP65 |
| Efficiency | ≥90% |
| Noise | ≤55dB |
Protection Features
Burnout Protection
When the internal temperature of the charger exceeds the internal setting value, the charging current is automatically reduced; when the ambient temperature exceeds 65°C, the charger will automatically shut down for protection, and when the temperature is restored, charging will be automatically resumed.
Protection for Reverse Connection of Batteries
When the battery is connected in reverse, the internal circuit of the charger will disconnect itself from the battery, and the charger will not be damaged.
No-load Protection
No output when no battery is connected.
Short Circuit Protection
When the output short circuit occurs, the internal circuit of the charger and the battery are disconnected, and the charging can only be resumed after the fault is eliminated and the battery is reconnected
