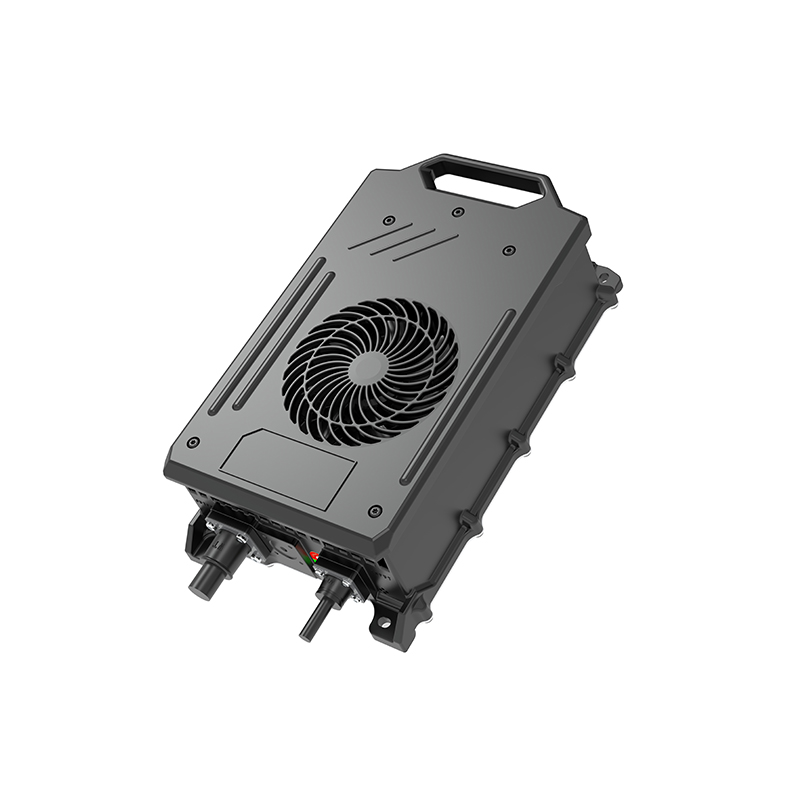

3000W BG

3000W BG

Sealed Design
Portable/ Onboard
Cycle charging or floating charging for battery pack of lead-acid, lithium, NI-MH, NI-CD in E-motorcycle, ATV/UTV, golf cart, lawn mower, AGV, forklift, E-surfboard, E-boat, etc.
Easily parrel the 3000W BG to provide up to 6000W to 9000W of power
Charge from standard EV AC charging stations across North America（1500W） and Europe(3000W)
Contact Us

PRODUCT CHARACTERISTICS

SAFETY & Certificates

Active PFC and LLC techniques applied.

Reliable hardware and voltage& current self-test protection.

Advanced charging strategy to ensure safety in the charging process.

In compliance with UL/CB/CE/FCC/KC/RCM/ CEC/DOE/CP65/ECE R10 directives.

RELIABILITY

Integrated die casting technique for shell.

Inside filled with Organosilicon Encapsulant for heat-conducting, anti-shock, anti-aging.

Proven verification in all kinds of tough industrial environments (Wet, Hot, High vibration, Dust).



FUNCTIONS

CAN BUS (Optional)

Auxiliary Power (Optional)

CC Function at output DC part (Optional)

Vehicle Charging Interlock System (Optional)

Bluetooth (Optional)

External Indicator (Optional)

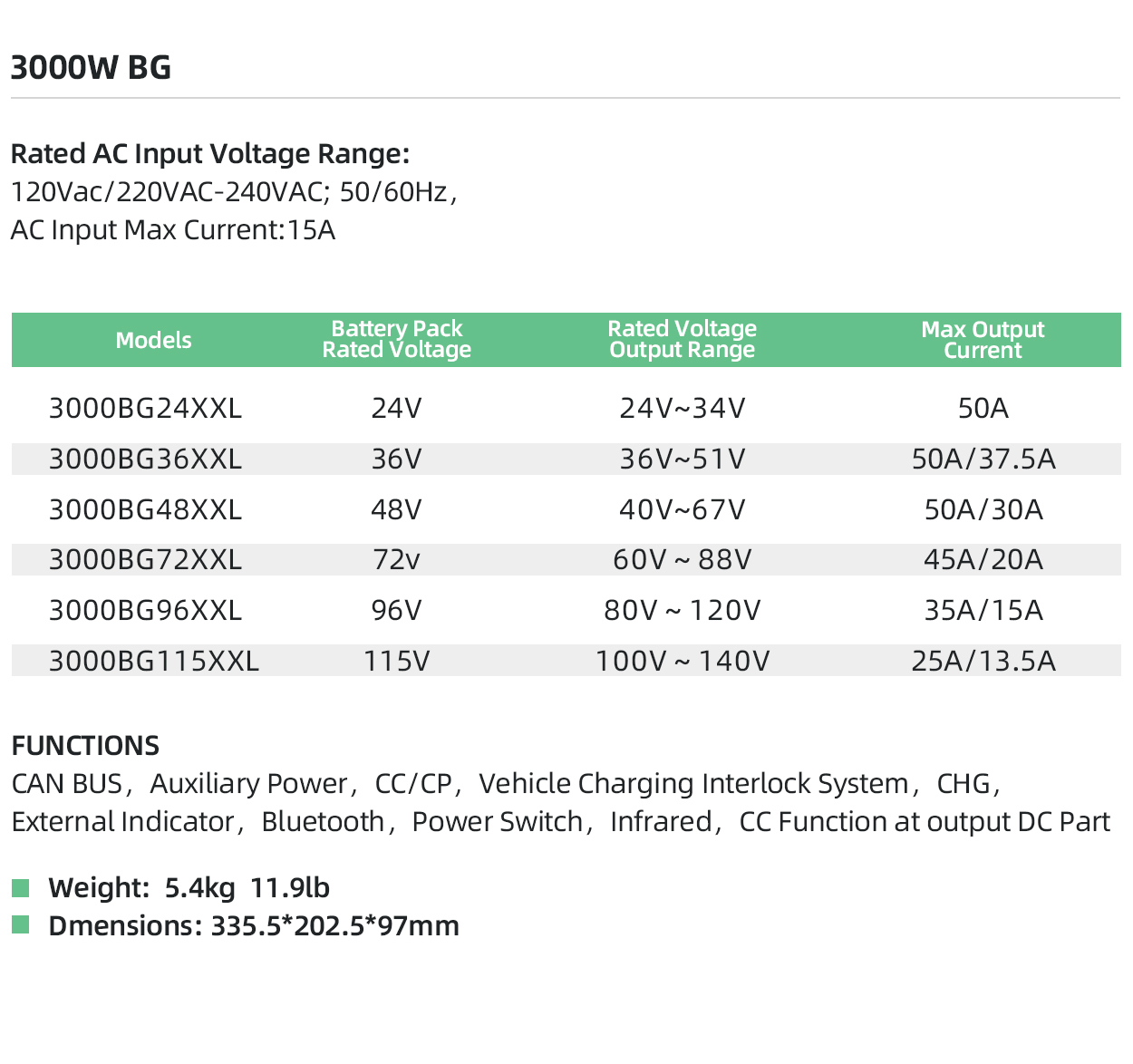

Technical Specifications

Rated AC Input Voltage Range: 120VAC/200~240VAC; 50/60Hz
AC Input Max Current: 13A@120VAC; 15A@220VAC

Models Battery Pack Rated Voltage Rated Voltage Output Range Max Output Current
3000BG24XX 24V 24V ~ 34V 50A
3000BG36XX 36V 36V ~ 51V 50A
3000BG48XX 48V 40V ~ 67V 50A
3000BG60XX 60V 60V ~ 84V 35A
3000BG72XX 72V 66V ~ 103V 35A
3000BG96XX 96V 80V ~ 120V 30A
All Models
Dimensions 355.5x 202.5x 97mm
Weight 6kg (13.2lb)
 All Models
Operating Temperature-30°C~65°C (-80℉~149℉)
Storage Temperature-40°C~95°C (-104℉~203℉)
IP RatingIP65
Efficiency≥90%
Noise≤55dB

Protection Features

Burnout Protection

When the internal temperature of the charger exceeds the internal setting value, the charging current is automatically reduced; when the ambient temperature exceeds 65°C, the charger will automatically shut down for protection, and when the temperature is restored, charging will be automatically resumed.

Protection for Reverse Connection of Batteries

When the battery is connected in reverse, the internal circuit of the charger will disconnect itself from the battery, and the charger will not be damaged.

No-load Protection

No output when no battery is connected.

Short Circuit Protection

When the output short circuit occurs, the internal circuit of the charger and the battery are disconnected, and the charging can only be resumed after the fault is eliminated and the battery is reconnected

Automatic shutoff when fully charged
