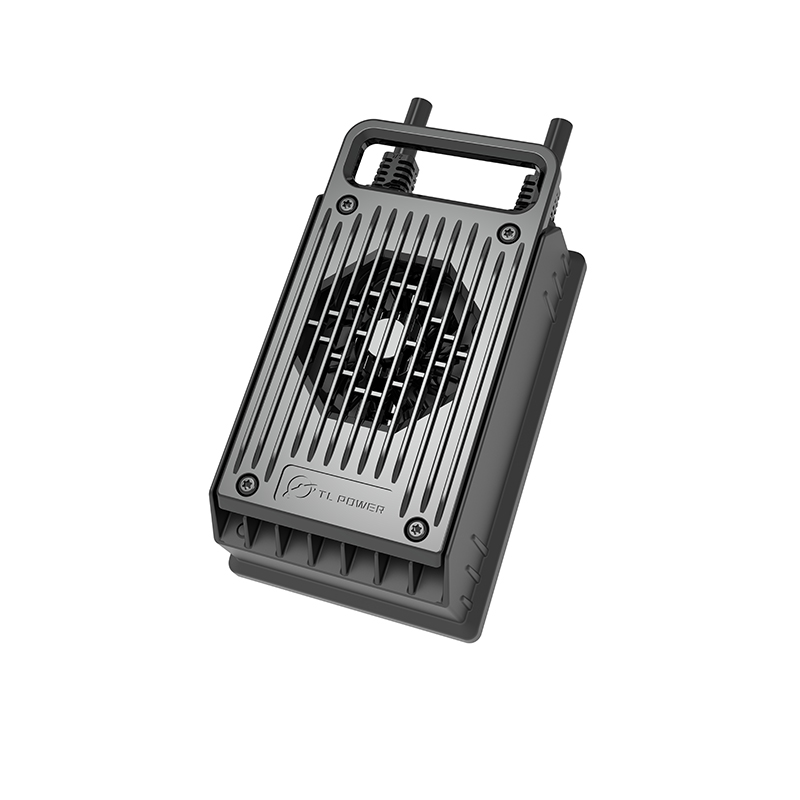

336W CG

Sealed Design
Cycle charging or floating charging for battery pack of lead-acid, lithium, NI-MH, NI-CD in E-bike, E-scooter, E-motorcycle, ATV/UTV, golf cart, lawn mower, AGV, forklift, etc.



Active PFC and LLC techniques applied.

Reliable hardware and voltage& current self-test protection.

Advanced charging strategy to ensure safety in the charging process.

In compliance with UL/CB/CE/FCC/KC/RCM/CEC/DOE/CP65/ECE R10 directives


Integrated die casting technique for shell.

Inside filled with Organosilicon Encapsulant for heat-conducting, anti-shock, anti-aging.

Proven verification in all kinds of tough industrial environments (Wet, Hot, High vibration, Dust).


CAN BUS (Optional)

Auxiliary Power (Optional)

Vehicle Charging Interlock System (Optional)

Infrared (Optional)

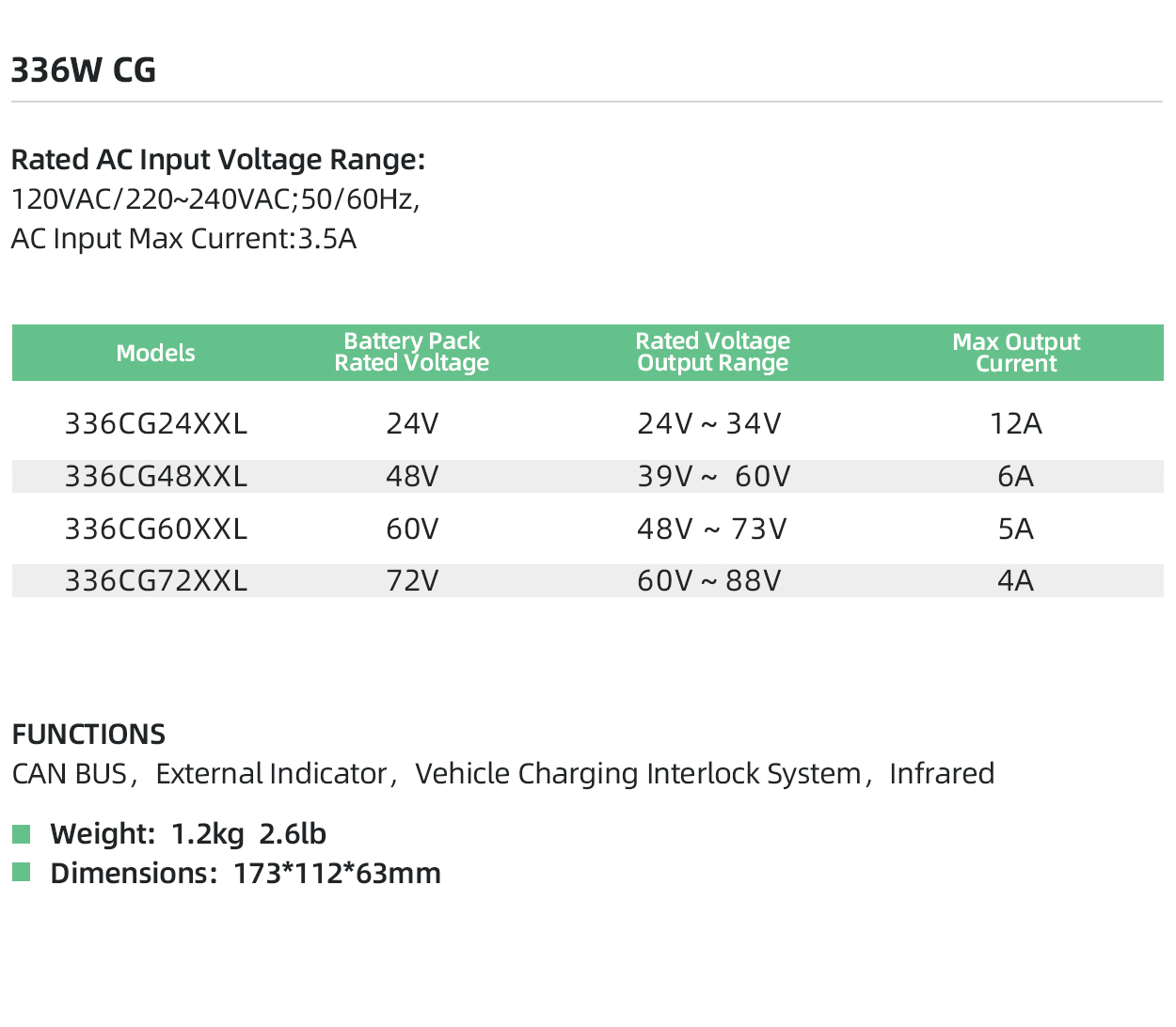

Technical Specifications

Rated AC Input Voltage Range: 120VAC/220~240VAC; 50/60Hz
AC Input Max Current: 3.5A

Models Battery Pack Rated Voltage Rated Voltage Output Range Max Output Current
336CG24XX 24V 24V ~ 34V 12A
336CG48XX 48V 39V ~ 60V 6A
336CG60XX 60V 48V ~ 73V 5A
336CG72XX 72V 60V ~ 88V 4A
 All Models
Dimensions173x 112x 63mm
Weight2kg (4.4lb)
 All Models
Operating Temperature-30°C~65°C (-80℉~149℉)
Storage Temperature-40°C~95°C (-104℉~203℉)
IP RatingIP65

Protection Features

Burnout Protection

When the internal temperature of the charger exceeds the internal setting value, the charging current is automatically reduced; when the ambient temperature exceeds 65°C, the charger will automatically shut down for protection, and when the temperature is restored, charging will be automatically resumed.

Protection for Reverse Connection of Batteries

When the battery is connected in reverse, the internal circuit of the charger will disconnect itself from the battery, and the charger will not be damaged.

No-load Protection

No output when no battery is connected.

Short Circuit Protection

When the output short circuit occurs, the internal circuit of the charger and the battery are disconnected, and the charging can only be resumed after the fault is eliminated and the battery is reconnected

Automatic shutoff when fully charged
